Compact Size. Serious Performance.

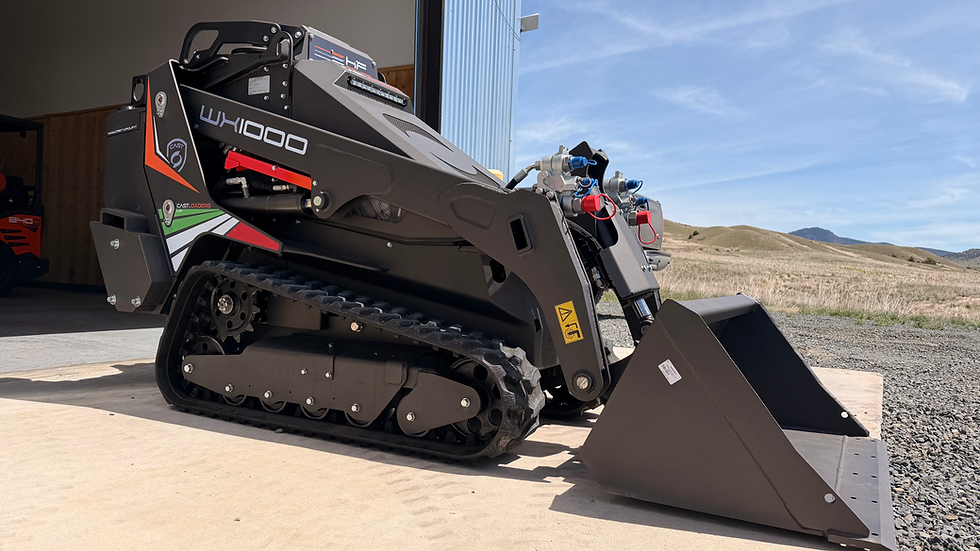

When you need full-size capability in a machine that fits through a gate, the CAST WX1000 Mini Skid Steer answers the call. Engineered and built in Italy, this stand-on mini skid steer packs serious power, smart technology, and rugged all-steel construction into a footprint compact enough to work where bigger machines can't reach — perfect for landscaping, construction, property maintenance, and tight-access jobsites.
At its core is a dependable Kubota D1105 diesel engine delivering 25 HP of reliable, fuel-efficient power, backed by a 13.2-gallon diesel fuel capacity for long hours between fill-ups. With a top speed of 3.7 MPH and a robust hydraulic system pushing 3,000 PSI, the WX1000 brings the muscle to dig, lift, grade, and haul all day long.
Attachment performance is where this machine shines. With standard 8.7 GPM hydraulic flow and an available 17.5 GPM high-flow setup — plus two hydraulic hook-ups and an available triple pump — the WX1000 runs everything from augers and trenchers to brush cutters and grapples with ease. The intuitive 8-function joystick keeps complete control at your fingertips, while the large 10" screen gives you clear monitoring and operation right from the operator station.
Built tough with all-steel construction, the WX1000 carries a 1,014 lb rated operating capacity and a 2,897 lb tipping capacity, all in a machine weighing 2,680 lbs and measuring just 35.82" wide — narrow enough to slip through standard gates and doorways without sacrificing power.

Specifications:
Engine: Kubota D1105 Diesel — 25 HP
Fuel Capacity: 13.2 Gallons (Diesel)
Hydraulic Flow: Standard 8.7 GPM | Hi-Flow 17.5 GPM
Hydraulic Pressure: 3,000 PSI
Travel Speed: 3.7 MPH
Machine Weight: 2,680 lbs
Dimensions: 85.03" L x 35.82" W x 55.80" H
Height to Pin: 24"
Rated Operating Capacity: 1,014 lbs
Tipping Capacity: 2,897 lbs

Standard Features:
All-Steel Construction
8-Function Joystick
Large 10" Screen
2 Hydraulic Hook-Ups
2-Year Warranty
Hi-Flow Hydraulics
Triple Pump

Built to Work. Built to Last.
The CAST WX1000 proves that compact size and serious performance belong in the same machine. Quality equipment. Real results.
